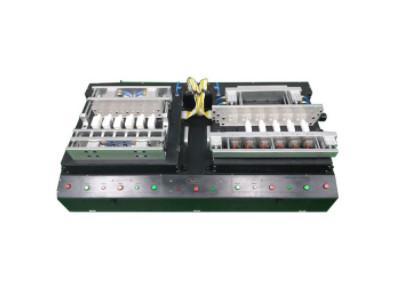

Automatic Switching Test Hipot ATE Circuit Board Fixture In Testing

Automatic Switching Test Fixture (Finished Product Testing)

Dongguan Chuangrui Electronics specializes in the production, R&D, and sales of ATE & Hipot automatic test fixtures. While meeting testing requirements and enhancing production capacity, these fixtures can save labor and reduce costs.

Product advantages of ATE & Hipot automatic test fixtures:

1. Labor-saving, cost reduction, and increased productivity: The ATE and Hi-POT tests switch seamlessly without interruption, offering high efficiency that reduces testing time and significantly speeds up product manufacturing. The process requires no manual operation; the Hi-POT and ATE tests, which originally required two workstations, can now be completed at a single workstation, reducing the need for operating personnel.
2. Simple and easy to learn: With a foolproof, simple operation and low operational requirements, the powerful automatic alignment feature enhances labor efficiency.
3. High safety performance: The ATE and Hi-POT testing circuits are mechanically separated. All switching actions are controlled automatically by a computer. Infrared sensing devices are installed, and a two-hand control valve is used, greatly improving operator safety.
4. Strong anti-interference ability: Good internal mechanical performance eliminates various interferences, ensuring stable and accurate output of various testing indicators.
5. Strong applicability: Suitable for mass production testing of various power supplies (adapters, chargers, LED drivers); suitable for different stages of testing (finished product stage, semi-finished product stage); fits various power supply appearances; supports various intelligent safety testing equipment (e.g., HuaYi 7400 series, CHROMA 19000 series, Kikusui intelligent safety testing equipment...).
6. High flexibility: The ATE+Hi-POT automatic switching fixture can be customized according to the product.

The ATE+Hi-POT automatic switching fixture utilizes numerous solenoid valves and pneumatic components (requires an air pressure device).

Product features:

I. Economical, quick changeover, and flexibility

1. The main body and accessories can be separated. (The accessories are the automatic pin-in/pin-out jig boxes for different products.)
2. After connecting the main body with the system, you can change the accessories without moving the main body. It takes only 2 minutes to replace the accessories to complete the switch test for other products.
3. One system is equipped with a fixed fixture main body, and different brake accessory boxes are matched according to different products being tested, saving costs.
4. The accessory box can be customized according to the product for the fastest method of taking, placing, and pin-in/pin-out testing.
5. The fixture testing items can change the testing mode as needed;
6. Continuous switching between ATE and high voltage testing
7. Can perform high voltage testing alone
8. Can perform ATE testing alone

II. Safety and stability

1. ​A precise and reasonable mechanical structure ensures uninterrupted and accurate stability during operation.
2. All test needles use gold plating technology to ensure stable full contact every time.
3. Complete mechanical separation of ATE and high voltage ensures utmost safety.

III. Appearance and structure

1. The internal precision high voltage & ATE mechanical switching module is compact, ensuring the overall structure of the fixture is as small as possible.
2. The most reasonable mechanical braking structure for the product under test ensures the fastest time for placement, pin-in/pin-out, and removal of the product under test.

Automatic Switching fixture in testing

ATE fixture in testing

ATE circuit board test fixture
